Delegate automatic upgrades and expiration policy

The Harness Delegate supports automatic upgrades. It is recommended that you enable automatic upgrades for your delegate to ensure it remains updated with the latest version.

Delegate upgrades do not affect pipelines unless the shutdown timeout is reached. Before an upgrade is performed, the delegate finishes the tasks that are underway. The delegate then shuts down. As part of the shutdown process, there is a 10 minute timeout by default. You can configure this setting. For more information, go to Graceful delegate shutdown.

info

The automatic upgrade feature is enabled by default for the Kubernetes manifest, Terraform, and Helm installation options. For Docker delegates, you need to run a separate command to enable auto-upgrader.

How automatic upgrade works

Kubernetes manifest Delegate

The Kubernetes manifest has a component called upgrader. The upgrader is a cron job that runs every hour by default. Every time it runs, it sends a request to Harness Manager to determine which delegate version is published for the account. The API returns a payload, such as harness/delegate:yy.mm.verno. If the delegate that was involved in this upgrade cron job does not have the same image as what the API returns, the kubectl set image command runs to perform a default rolling deployment of the delegate replicas with the newer image.

To prevent the installation of the automatic upgrade feature, remove the CronJob section before you apply the manifest.

You can also change the time when the upgrade cron job runs by updating the schedule. For configuration details, go to Configure the delegate upgrade schedule.

Example Kubernetes manifest

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: upgrader-cronjob
  namespace: harness-delegate-ng
rules:
  - apiGroups: ["batch", "apps", "extensions"]
    resources: ["cronjobs"]
    verbs: ["get", "list", "watch", "update", "patch"]
  - apiGroups: ["extensions", "apps"]
    resources: ["deployments"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]

---

kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: kubernetes-delegate-upgrader-cronjob
  namespace: harness-delegate-ng
subjects:
  - kind: ServiceAccount
    name: upgrader-cronjob-sa
    namespace: harness-delegate-ng
roleRef:
  kind: Role
  name: upgrader-cronjob
  apiGroup: ""

---

apiVersion: v1
kind: ServiceAccount
metadata:
  name: upgrader-cronjob-sa
  namespace: harness-delegate-ng

---

apiVersion: v1
kind: Secret
metadata:
  name: test-upgrader-token
  namespace: harness-delegate-ng
type: Opaque
data:
  UPGRADER_TOKEN: "DELEGATE_TOKEN"

---

apiVersion: v1
kind: ConfigMap
metadata:
  name: test-upgrader-config
  namespace: harness-delegate-ng
data:
  config.yaml: |
    mode: Delegate
    dryRun: false
    workloadName: DELEGATE_TO_AUTO_UPGRADE
    namespace: harness-delegate-ng
    containerName: delegate
    delegateConfig:
      accountId: ACCOUNT_ID
      managerHost: HARNESS_MANAGE_ENDPOINT_URL

---

apiVersion: batch/v1
kind: CronJob
metadata:
    labels:
        harness.io/name: test-upgrader-job
    name: test-upgrader-job
    namespace: harness-delegate-ng
spec:
    schedule: "0 */1 * * *"
    concurrencyPolicy: Forbid
    startingDeadlineSeconds: 20
    jobTemplate:
        spec:
        template:
            spec:
                serviceAccountName: upgrader-cronjob-sa
                restartPolicy: Never
                containers:
                - image: harness/upgrader:latest
                name: upgrader
                imagePullPolicy: Always
                envFrom:
                - secretRef:
                    name: test-upgrader-token
                volumeMounts:
                    - name: config-volume
                    - mountPath: /etc/config
                volumes:
                    - name: config-volume
                    - configMap:
                        name: test-upgrader-config

Docker Delegate

Feature flag details

The Docker Delegate Upgrader is currently behind the feature flag PL_SHOW_AUTO_UPGRADE_FOR_DOCKER_DELEGATE, which must be enabled to access this functionality. Contact Harness Support to enable the feature.

The Docker Delegate upgrader is responsible for two tasks: upgrading the Docker images used for running Docker delegates and performing health checks on those delegates.

Note

Docker delegate upgrader is not supported if the delegate images are configured to be pulled from a private registry. If you attempt to run a Docker upgrader for these delegates, only health checks will be performed; automatic upgrades will not occur.

Example Docker delegate upgrader command

  docker run  --cpus=0.1 --memory=100m \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -e ACCOUNT_ID=<account_ID> \
  -e MANAGER_HOST_AND_PORT=https://app.harness.io \
  -e UPGRADER_WORKLOAD_NAME=docker-delegate \
  -e UPGRADER_TOKEN=<delegate_token> \
  -e SCHEDULE="0 */1 * * *" us-west1-docker.pkg.dev/gar-setup/docker/upgrader:latest

The Docker Delegate upgrader makes use of Docker volume mount -v /var/run/docker.sock:/var/run/docker.sock \. Through this it mounts the Docker socket file from the host to the same path inside the delegate upgrader container. This enables the delegate upgrader container to communicate with the Docker daemon and perform tasks related to upgrade.

The Docker upgrader is scheduled to upgrade the delegate every one hour by default. This is done through the SCHEDULE environment variable. -e SCHEDULE="0 */1 * * *". According to the configured schedule, the upgrader searches for Docker delegates whose environment variable, DELEGATE_NAME, matches the value of the environment variable UPGRADER_WORKLOAD_NAME. When it identifies eligible Docker delegates where the latest version of the published image for the account differs from the delegate's current version, it proceeds to upgrade those delegates.

In case of a successful upgrade, the old container is stopped within a 1 hour timeout by default and a new container is brought up with the upgraded delegate version. If you would like to customize the timeout to a different value, set the CONTAINER_STOP_TIMEOUT environment variable in the docker run command for the upgrader. For example, pass the following as environment variable to configure Docker Delegate upgrader timeout to 45 minutes: -e CONTAINER_STOP_TIMEOUT=2700.

info

User information is not propagated when a delegate is started from external sources. All delegate operations are recorded under the SYSTEM user in the audit trail, especially during the scale-up and scale-down processes. The Action column displays actions when a delegate is created, updated, or upserted. For more information about the audit trail, go to View audit trail.

Determine if automatic upgrade is enabled

When a delegate is installed, it may take up to an hour by default to determine if the upgrader was removed during installation. During that time, the delegate shows a status of DETECTING.

Harness updates the status when upgrader makes its first API call to the Harness platform. The default schedule is one hour, but the schedule is configurable. If Harness doesn't detect the upgrader API call within 90 minutes, the upgrade status is updated from DETECTING to AUTO UPGRADE: OFF.

Let's say the upgrader schedule is configured to two hours. The upgrade status would change from AUTO UPGRADE: OFF to AUTO UPGRADE: ON and back to AUTO UPGRADE: OFF. Every 90 minutes that Harness doesn't detect the API call, the status is set to AUTO UPGRADE: OFF. As soon as Harness detects it again, the status is set to AUTO UPGRADE: ON. Harness recommends a default schedule of 60 minutes. For more information, go to Configure the delegate upgrade schedule.

To find the delegate status, select an account, a project, or an organization, then select Settings. Under resources, select Delegates. For more information, go to Delegates list page.

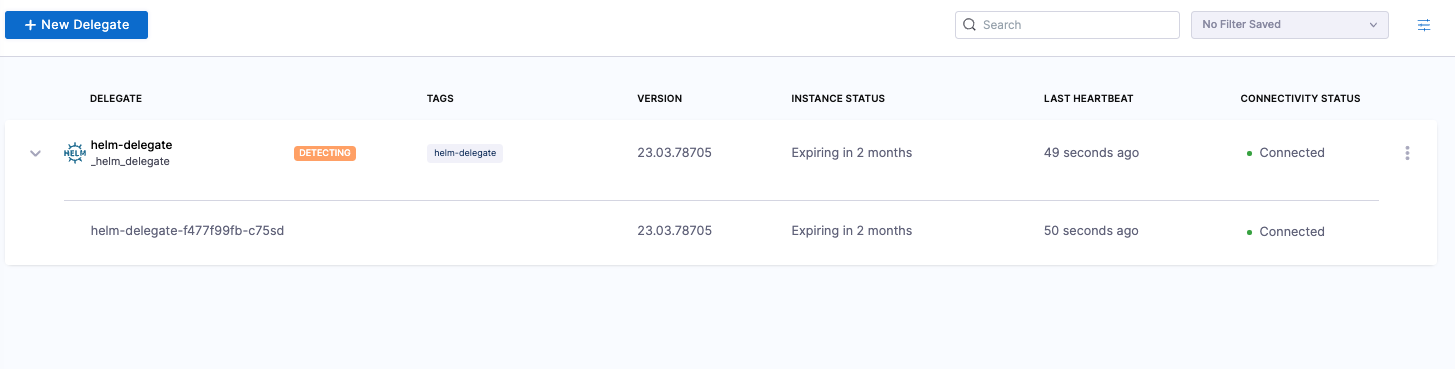

Detecting delegate

When the delegate is first installed, the Delegates list page displays an Auto Upgrade status of DETECTING and then SYNCHRONIZING. After the first hour (for the default upgrader configuration) or your custom configured time, the delegate shows a status of AUTO UPGRADE: ON or AUTO UPGRADE: OFF.

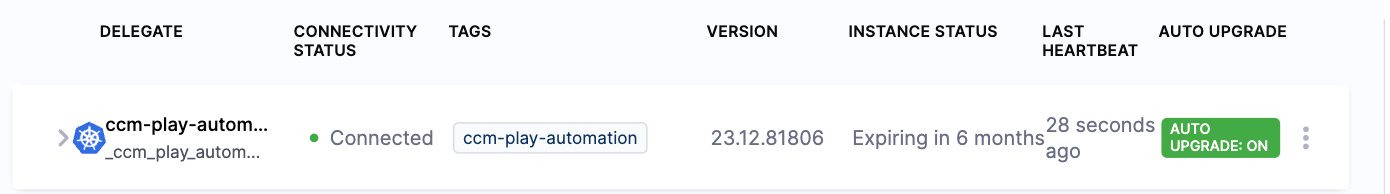

Auto-upgrade on

Disable automatic upgrade

If you disable automatic upgrades, then you have to manually upgrade the delegate regularly to prevent a loss of backward compatibility.

Kubernetes manifest Delegate

To disable auto-upgrade on an installed delegate image, do the following:

Run the following command to suspend auto-upgrade on the installed image.

kubectl patch cronjobs <job-name> -p '{"spec" : {"suspend" : true }}' -n <namespace>

In the delegate manifest, locate the CronJob resource. In the resource spec, set the suspend field to true.
```
spec:
   - suspend: true
```

Docker Delegate

The Docker Delegate upgrader can upgrade multiple Docker delegates. An upgrader is capable of upgrading Docker delegates whose value of the environment variable DELEGATE_NAME is same as the value of the upgrader’s UPGRADER_WORKLOAD_NAME environment variable.

If you do not need auto-upgrade capabilities, the upgrader can still be used to perform health checks on the delegate. This can be achieved by passing an environment variable DISABLE_AUTO_UPGRADE to the upgrader and setting it to true. By default this is set to false.

 -e DISABLE_AUTO_UPGRADE=true

Configure the delegate upgrade schedule

Harness recommends a default schedule of 60 minutes, but suggests a range between one and 90 minutes for optimal performance.

important

If you set the value outside of this range, upgrades will still work as expected. However, if the frequency exceeds 90 minutes, Harness will not be able to detect any auto-upgrades, and the UI will display that auto-upgrades are turned OFF.

Kubernetes manifest Delegate

To configure the delegate upgrade schedule, do the following:

In the delegate.yaml manifest file, locate the upgrader-cronjob resource.

Configure the CronJob resource to your specific settings.

The CronJob YAML configuration should look something like the example below that runs the job every 15 minutes. The spec.schedule field defines when and how often the job should run.

---

apiVersion: batch/v1
kind: CronJob
metadata:
  labels:
    harness.io/name: kubernetes-delegate-upgrader-job
  name: kubernetes-delegate-upgrader-job
  namespace: harness-delegate-ng
spec:
  schedule: "0,15,30,45 * * * *"
  concurrencyPolicy: Forbid
  startingDeadlineSeconds: 20
  jobTemplate:
    spec:
      template:
        spec:
          serviceAccountName: upgrader-cronjob-sa
          restartPolicy: Never
          containers:
          - image: harness/upgrader:latest
            name: upgrader
            imagePullPolicy: Always
            envFrom:
             - secretRef:
                name: kubernetes-delegate-upgrader-token
            volumeMounts:
              - name: config-volume
                mountPath: /etc/config
          volumes:
            - name: config-volume
              configMap:
                name: kubernetes-delegate-upgrader-config

For more information on the schedule syntax, go to Writing a CronJob spec in the Kubernetes documentation.

Save the file.
Run the following.
```
kubectl apply -f harness-delegate.yaml
```
The schedule change for the cron job will take effect immediately, and the next upgrade run will follow the new schedule. If you have made any other changes to the YAML file, such as updating the image, configuration, environment variables, and so on, those changes will take effect during the next run.

Docker Delegate

To configure the delegate upgrade schedule for Docker delegates, do the following:

In the docker run command for the upgrader, locate the SCHEDULE environment variable.
Configure the time period after which you want the upgrader to check for upgrades as a cron expression. For example, if you want to check after every 15 minutes, update the cron expression in the SCHEDULE environment variable:

  -e SCHEDULE="0 */15 * * *"

Run the docker run command for the Docker delegate upgrader with the updated value of SCHEDULE environment variable.

Configure an optional registry mirror for delegate images

If you use Docker pull through registry cache (https://docs.docker.com/docker-hub/mirror/), you can configure upgrader to use an optional registry mirror for your delegate images.

When this feature is configured, Harness Delegate images are fetched from the designated mirror, instead of public Docker Hub.

mode: Delegate
dryRun: false
workloadName: delegate-name
namespace: harness-delegate-ng
containerName: delegate
registryMirror: us.gsr.io/gcr-mirror
delegateConfig:
  accountId: <YOUR_ACCOUNT_ID>
  managerHost: <MANAGER_HOST>

During an upgrade, when upgrader seeks to update the delegate to harness/delegate:verno, it will utilize the image from us.gsr.io/gcr-mirror/harness/delegate:verno.

This option can be enabled by setting upgrader.registryMirror Helm value for Delegate Helm chart or by modifying Upgrader Kubernetes manifest.

Use automatic upgrade with custom delegate images

You may choose to use a custom delegate image for the following reasons:

You don't have access to Docker Hub, so you pull the Harness images and put them in your own container registry.
You use the Harness Delegate as a base image and install tools, certificates, etc.

If automatic upgrade is enabled and you have a custom image, the following may occur:

If the Kubernetes cluster does not have access to Docker Hub, then the upgrade fails.
If the Kubernetes cluster has access to Docker Hub, then the new published image is deployed. This action causes the custom tooling to be lost.

To avoid these issues, you can set up the upgrader to use your custom delegate tag.

Latest supported delegate version

Use the latest-supported-version API to determine the delegate number for your account:

curl --location 'https://app.harness.io/ng/api/delegate-setup/latest-supported-version?accountIdentifier=\<YOUR_ACCOUNT_IDENTIFIER>' \
 --header 'x-api-key: \<YOUR_API_KEY>'

The following example result is returned. It returns the tag of the delegate that is released to your account.

{
"metaData": {},
"resource": {
    "latestSupportedVersion": "24.04.82804",
    "latestSupportedMinimalVersion": "24.04.82804.minimal"
},
"responseMessages": []
}

When the upgrader makes a request, it tries to change the image to harness/delegate:24.04.82804. You can take either the harness/delegate:24.04.82804 image or the harness/delegate:24.04.82804.minimal image and build your own image by adding more tools and binaries, and then push it to your own container repository. For example, you might publish the image to a private repository, such as artifactory-abc/harness/delegate:24.04.82804.

Override delegate image version

Create a delegate override

Once the image is pushed, you can call the override-delegate-tag API to update delegate image version for one or more delegates using accountIdentifier, orgIdentifier, projectIdentifier, and tags.

  curl -i -X PUT \
  'https://app.harness.io/ng/api/delegate-setup/override-delegate-tag?accountIdentifier=<ACCOUNT_ID>&delegateTag=<IMAGE_VERSION>&orgIdentifier=<ORGANIZATION_ID>&projectIdentifier=<PROJECT_ID>&tags=<T1>,tags=<T2>,tags=<T3>&validTillNextRelease=false&validForDays=180' \
  -H 'x-api-key: YOUR_API_KEY_HERE'

note

For updating delegates successfully through scope level delegate override, ensure both the delegate and the upgrader are running with the same token. In other words, ensure that the value of DELEGATE_TOKEN and UPGRADER_TOKEN is same.

API Parameters

Parameter	Required	Description	Use Case
`delegateTag`	Yes	Custom delegate image version to override the existing delegate version	-
`accountIdentifier`	Yes	Harness account Id (`Account Settings → Account Details → Account Id`)	Used to update all delegates in an Account, including child scopes
`orgIdentifier`	No	Id assigned when creating the organization	Used to updated all delegates in an organization including child scopes
`projectIdentifier`	No	Id assigned when creating the project	Used to update all delegates in a specific project
`tags`	No	Tag assigned when creating the delegate	Used to update delegates with specific tags
`validTillNextRelease`	No	If set to true, your custom image version will be overridden when new delegate is released	-
`validForDays`	No	Days after which your custom image version will be overridden	-

note

At max, there can only be two override entries corresponding to a combination of query params: accountIdentifier, orgIdentifier (if present), and projectIdentifier(if present): one with tags and one without tags. If the same combination of parameters is used with a different value of tags or delegateTag, then the existing entry will get updated.
When the Delegate upgrader runs, the system looks for a match as per the following criteria:
- If delegate tags are not present:
  1. The system first checks for an override entry at the same scope. If it doesn’t find one, it then looks for an override entry at a higher scope. This process continues up through higher levels.
  2. If no match is found, the system defaults to using the latest version.
- If delegate tags are present:
  1. The system first checks for an override entry that has tags at the same scope. If it doesn’t find one, it then looks for an override entry with tags at a higher scope. This process continues up through higher levels.
  2. If it still doesn't find a match with tags, it then searches for an override entry at the same scope without tags, again moving up to higher scopes until it either finds a match or exhausts all options.
  3. If no match is found, the system defaults to using the latest version.
When tags are used, to find a match, tags present in a delegate override should be a subset of the actual delegate tags. Example: If a delegate has DELEGATE_TAGS = t1, t2 and an override entry exists with tags=t1, then the delegate will get upgraded. But if the override entry has tags=t1, t2, t3, then the delegate will not get upgraded.

Delete Delegate Override version

If you wish to delete an existing override, use the delete-delegate-override API.

curl -i -X DELETE \
'https://app.harness.io/ng/api/delegate-setup/delete-delegate-override?accountIdentifier=<ACCOUNT_ID>&orgIdentifier=<ORGANIZATION_ID>&projectIdentifier=<PROJECT_ID>&tags=<T1>,tags=<T2>,tags=<T3>\
-H 'x-api-key: YOUR_API_KEY_HERE'

API Parameters

Parameter	Required	Description
`accountIdentifier`	Yes	Harness account Id (`Account Settings → Account Details → Account Id`)
`orgIdentifier`	No	Id assigned when creating the organization
`projectIdentifier`	No	Id assigned when creating the project
`tags`	No	Tag assigned when creating the delegate

note

Each Delete API call deletes only one override entry if an exact match is found with the provided query parameters.

Delegate expiration support policy

Six months after a delegate image is released, the delegate reaches End of Support (EOS). Eight months after a delegate image is released, the delegate is End of Life (EOL).

When a delegate has been tagged as "expired", this does not stop a Delegate from continuing operations. It is a cosmetic flag to inform a customer that the delegate should be considered for an upgrade. Because delegates are only backward-compatible, they might have issues if the backend has moved too far ahead. Harness recommends that you upgrade your delegates before they expire.

Release	EOS	EOL
24.04.verno	23.10.verno and below	23.08.verno and below
24.05.verno	23.11.verno and below	23.09.verno and below

EOS means the following:

Harness Support will provide best-attempt support requests for the delegate, and would recommend a change to a newer version. This applies to both Harness FirstGen and Harness NextGen.
Security fixes will still be addressed, but may be already addressed with a newer update.
Product defects will not be addressed. Code Changes also will not be
If delegates are past their EOS date, Harness does not support them. Expired delegates might continue to work, but it is recommended to upgrade to a newer delegate if the delegate does not work as intended.

EOL means the following:

In addition to the EOS clauses, security fixes will not be addressed.

For a list of delegate images and their support status, go to Delegate image version support status.

Example delegate expiration

For delegates with an immutable image type, the image tag is yy.mm.verno. A delegate version 24.05.84200 would reach EOS in November 2024 and EOL in January 2025.

note

This policy applies to delegates with the yy.mm.verno image tag. It does not apply to legacy delegates. For information on delegate types, go to Delegate image types.

info

Harness Self-Managed Enterprise Edition support is limited to the delegate version released with the most recent version. When you upgrade Harness Self-Managed Enterprise Edition, the supported delegate version is included.

Determine when your delegate expires

To determine when your delegate expires, do the following:

Select an account, a project, or an organization, and then select Delegates.
Locate your delegate in the list, and then check the INSTANCE STATUS column.

Update the delegate YAML

Harness does not recommend the use of delegate images that are not current. However, if you require an earlier image version, check the repository on Docker Hub.

To update the delegate YAML, do the following:

Select New Delegate > Kubernetes > Kubernetes Manifest > Custom, and then follow the instructions on the screen.

For an example of a complete Delegate YAML file, go to Example Kubernetes manifest for Harness Delegate.

How automatic upgrade works​

Kubernetes manifest Delegate​

Docker Delegate​

Determine if automatic upgrade is enabled​

Disable automatic upgrade​

Kubernetes manifest Delegate​

Docker Delegate​

Configure the delegate upgrade schedule​

Kubernetes manifest Delegate​

Docker Delegate​

Configure an optional registry mirror for delegate images​

Use automatic upgrade with custom delegate images​

Latest supported delegate version​

Override delegate image version​

Create a delegate override​

Delete Delegate Override version​

Delegate expiration support policy​

Example delegate expiration​

Determine when your delegate expires​

Update the delegate YAML​

How automatic upgrade works

Kubernetes manifest Delegate

Docker Delegate

Determine if automatic upgrade is enabled

Disable automatic upgrade

Kubernetes manifest Delegate

Docker Delegate

Configure the delegate upgrade schedule

Kubernetes manifest Delegate

Docker Delegate

Configure an optional registry mirror for delegate images

Use automatic upgrade with custom delegate images

Latest supported delegate version

Override delegate image version

Create a delegate override

Delete Delegate Override version

Delegate expiration support policy

Example delegate expiration

Determine when your delegate expires

Update the delegate YAML
